Packaging machinery
D011-ADiaper Bagging and Sealing Machine
A sample-led semi-automatic platform for compressing diaper stacks, pushing them into a manually presented bag, then sealing, trimming and clearing the waste edge.
- Nominal output
- 8–10 packs/min
- Catalogue pack range
- 150–400 × 160–300 × 100–120 mm
- Power supply
- 220 V · 50 Hz
Machine view · supplied product image
What this configuration is built to do.
A sample-led semi-automatic platform for compressing diaper stacks, pushing them into a manually presented bag, then sealing, trimming and clearing the waste edge.
- 01PLC and touch-screen parameter control
- 02Adjustable product compression before bag insertion
- 03Automatic sealing, edge trimming and waste blow-off
- 04Sensor-first cycle logic for safer operator handling
Review the supplied
machine view.
Review the supplied machine demonstration alongside your own product, packaging and line conditions.

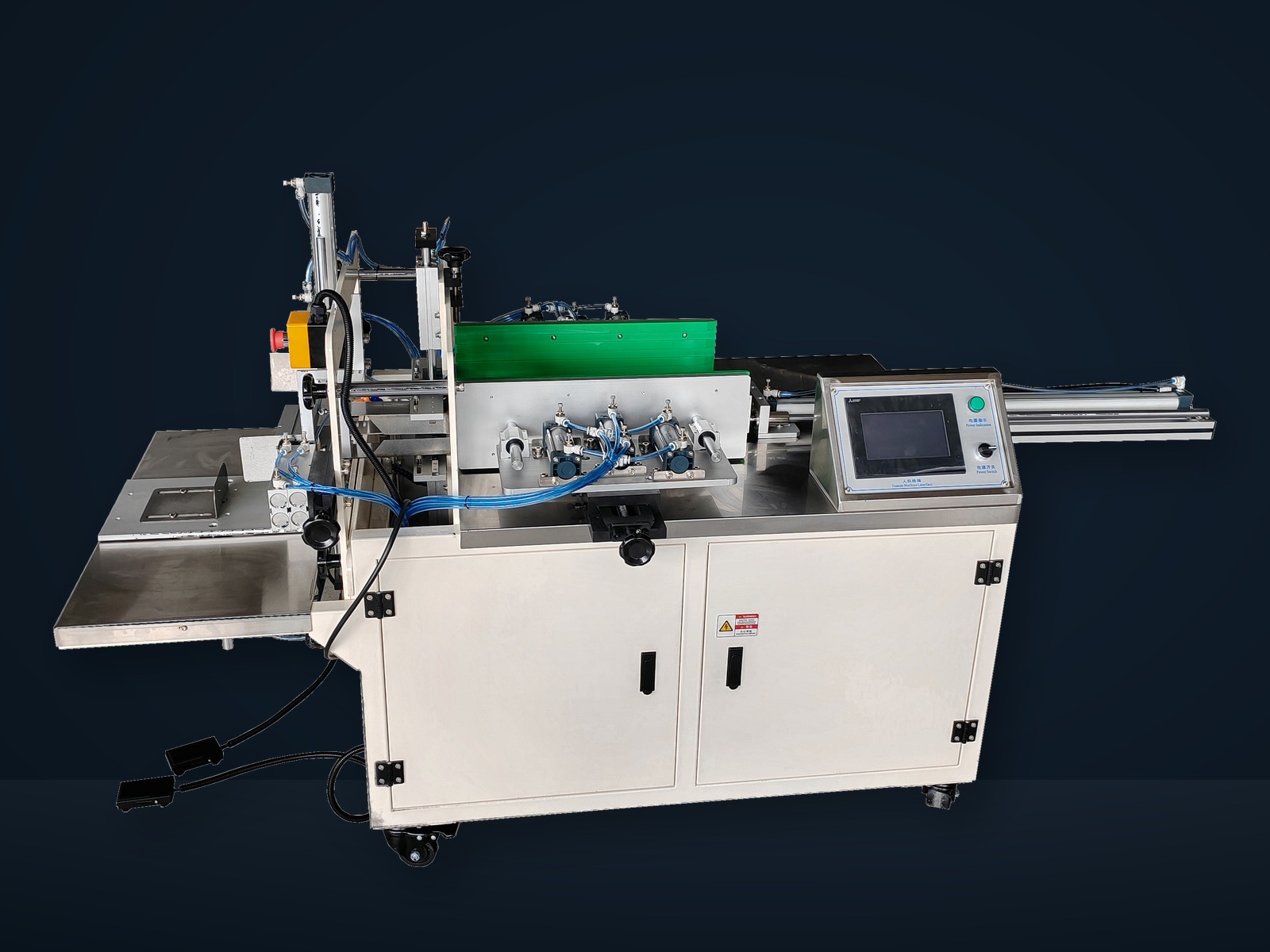

D011-A product viewStructure-preserving studio treatment from supplied photography
Technical specifications.
| Nominal output | 8–10 packs/min |
|---|---|
| Pack range | 150–400 × 160–300 × 100–120 mm |
| Automation | Semi-automatic |
| Power supply | 220 V · 50 Hz |
| Compressed air | 0.6 MPa |
| Installed power | 0.8 kW |
| Sealing temperature | Temperature-controlled sealing |
| Machine size | 2,000 × 1,250 × 1,300 mm |
| Approximate weight | Approx. 300 kg |
Specification source: Pack range and utilities are taken directly from the supplied D011 technical sheet.
Catalogue values are for planning. Confirm current configuration, dimension axes, carton fit and stable output against actual samples before a technical agreement.
Questions buyers ask about D011-A.
What products fit the D011-A?
The current configuration is intended for baby diapers, adult incontinence products, compressed hygiene-product bundles. Final fit is confirmed from product and packaging samples.
What output can the D011-A reach?
The supplied model sheet lists 8–10 packs/min. Actual stable output depends on product flow, material behavior, operator rhythm and the approved trial.
What pack sizes can the D011-A handle?
The current stated range is 150–400 × 160–300 × 100–120 mm. Multiple formats may require adjustment or change tooling.
What should I send for a configuration review?
Send the product, pieces per pack, finished pack dimensions, bag or carton material, target output, site voltage, air pressure and upstream-line details. Physical samples are recommended before final configuration.
